Match the profile.
Preserve the detail.

An existing piece. An architectural drawing. A detail worth carrying forward.

We develop the section for your approval, grind the tooling in-house, and verify the profile before your moulding — molding, in most US specifications — goes into production.

Tooling & setup pricing
The section defines the detail.Fig. 01
01 / Section
Illustrative wood rendering of the UW10032 baseboard moulding (molding), showing its ogee and bead details02 / Moulding
UW10032Existing library profile · illustrative rendering
Section approved before toolingKnives ground in-houseTooling retained for reorders

From sample to finished moulding

One profile.
Every detail carried through.

Depth, curves, and edges define a moulding. Following the section through each stage keeps those details at the centre of the work.

AI-generated process illustrations · select a rendered image to view the detail

  1. 01 / Identify

    Start with the sample.

    Bring an existing piece or a dimensioned drawing. We check the library before recommending new tooling.

  2. 02 / Draw

    Approve the section.

    The profile becomes a dimensioned section. You approve the shape and dimensions before steel is ground.

  3. 03 / Plastic template

    Create the profile template.

    The approved section is transferred to a plastic profile template, providing a reference for grinding.

  4. 04 / Steel knife

    Grind the steel knife.

    The cutting edge is ground in-house to the profile reference, ready for setup and a test run.

  5. 05 / Check

    Verify the test cut.

    Test pieces are checked against the section for dimensions, profile detail, and surface quality.

  6. 06 / Produce

    Run your moulding.

    The approved profile is milled in your specified species. The knife stays on file for future runs.

These illustrations explain the sequence, not the fabrication geometry. Production follows the approved section drawing.

Start with what you have

Bring the detail.
We’ll help define the run.

Send a sample or drawing, your preferred species, and the required footage. A photo can help start the conversation; the section is confirmed before tooling.

Request a profile match

For your profile review

  • 01Sample or dimensioned drawing
  • 02Species and intended finish
  • 03Approximate lineal footage

Already in the library?

Compare existing profiles An existing knife may eliminate the new-tooling charge. Setup still applies.

Price schedule · Effective October 2026

Profile tooling.

Moulding itself is priced per lineal foot by species and section on your written quote. These charges are added per profile.

Library profile — knife on fileNo chargeStocked profiles and the milled-to-order library. The knife already exists, so only setup applies. Each profile page carries its spec sheet.
New profile knife$45 per inch of width $150 minimumGround in-house and held on file at UWP — reorders carry no knife charge. Width is measured across the finished profile. Non-refundable once ground.
Section drawing for approvalIncludedEvery new knife starts from a dimensioned section drawing you sign off before steel is ground.
Profile match from a sample$75Field piece or sample traced and drawn. Credited in full when the run is ordered.

Setup

Setup, per profile, per run.

Setup covers mounting the knives, setting the heads and proving the section on test pieces. It is charged once per profile each time the profile runs.

Under 100 LF$150Short runs — repair lengths, a single room, a match to existing trim.
100 – 399 LF$95Charged once per profile per run.
400 LF and overQuote onlyPackaged and unit quantities. Setup is built into the quoted per-foot price — call the shop or send the takeoff.

Shop services

Shop rate and rush.

Shop rate$125 per hourOne-hour minimum per job. Ripping, resawing, sanding, cut-to-length, special machining and drawing revisions after the first.
Rush+25% of the order $100 minimumAhead of the quoted lead time, when the shop schedule allows. Confirmed in writing before the run.

Order terms.

  1. 1.Minimum order: $250 of moulding. Tooling, setup and shop charges do not count toward the minimum.
  2. 2.A 50% deposit is due on any order that needs a new knife. Balance at pickup or delivery, or on approved account terms.
  3. 3.Footage runs within ±10% of the quantity ordered and is billed as run.
  4. 4.Lead time 7–14 days. Custom runs cannot be returned once milled.
  5. 5.Pickup at NW Houston / Tanner Rd (9915 Tanner Road). Delivery quoted by destination zip.
PDF · one page · October 2026Custom Moulding Price ScheduleDownload PDF →
Frequently asked

Before your custom run.

Details on matching, tooling, setup, and reorders.

Why is there a setup charge?
Every profile change means mounting the knives, setting the heads and running test pieces until the section matches the drawing. That time is the same whether the run is 20 feet or 300, so short runs carry it as a flat charge. At 400 LF and over it is built into the quoted per-foot price instead.
Do I own the knife?
The knife is held on file at UWP under your profile. You pay for it once; every reorder of that profile carries setup only, never a second knife charge.

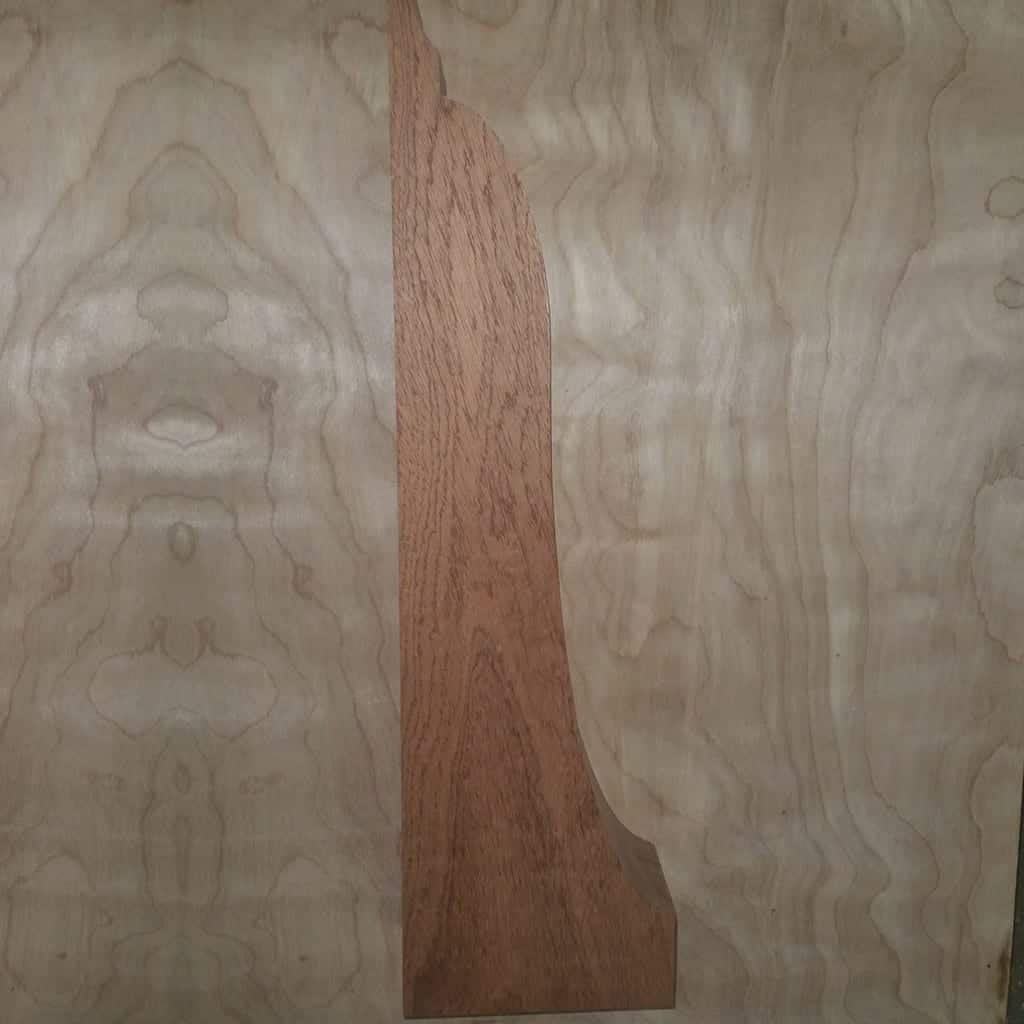

Can you match moulding I already have?
Yes. Bring or ship a sample. The profile is traced and drawn as a dimensioned section for your approval. The $75 match fee is credited in full when the run is ordered.
What does 400 LF and over cost?
Runs of 400 lineal feet and over, and packaged or unit quantities, are quoted per job. Setup is folded into the per-foot price, so the number on the quote is the number you pay before tax.
What does the shop rate cover?
$125 per hour, one-hour minimum per job, for work outside a standard moulding run: ripping, resawing, sanding, cutting to length, special machining, and drawing revisions after the first.

Send the section, the species and the footage.

Quotes from the shop at NW Houston / Tanner Rd — orders@uniquewoodproducts.com or (713) 462-5045.
